Vibrating Feeder

Vibrating Feeder

This Hongxing ore vibrating feeder is manufactured on the theory of vibration, which is widely used in mining, construction materials, silicate and chemical industry. The vibrating feeder can provide ores and rocks within 500mm for the next working procedure.


Get Quote        Get More Help

Feeding Machine -- Vibrating Feeder

This Hongxing ore vibrating feeder is manufactured on the theory of vibration, which is widely used in mining, construction materials, silicate and chemical industry. The vibrating feeder can provide ores and rocks within 500mm for the next working procedure.

Vibrating feeder can continuously and evenly send materials to crusher and roughly screen them. It matches crushing and screening machines in many areas such as metallurgical industry, coal mining, mining-selecting, building, chemical and grinding industry, etc.

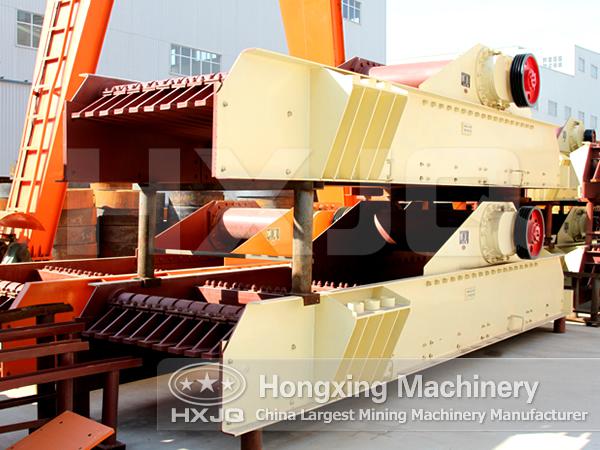

Vibrating feeder



Structure Characteristics Of Feed Grizzly

The series of vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. In installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through the vibration, the materials will slip and sling on the funnel, moving forward, and when the materials pass the screening part, smaller parts will fall down, avoiding the further crushing, so screening purpose can be reached.

Features and Benefits Of Vibratory Feeder

Vibratory feeder has stable vibration, reliable working and long service life. The exciting force can be adjusted to change and control the material flow and the adjustment is convenient and stable. The vibration motor is the vibration source, so that the noise is low, electricity consumption is small and the adjusting performance is good without material clashing. It has the advantages of simple structure, reliable operation, convenient adjustment and installation, light weight and small size and convenient maintenance and repair. Adopting sealed structure, powder dust pollution can be avoided.

Working Principle Of Vibrating Feeder

The vibrating feeder is composed of feeding cavity, vibration generator, and support spring and transmission device. The vibration source of the vibration case is the vibration generator, which is composed of two eccentric drafts both active and passive and gears. Active draft will be driven by belt and gears on the active draft will joggle the passive draft to rotate, thus the two drafts will rotate simultaneously and reversely to make the bank vibrate and materials transferred continuously to fulfill the purpose of material transferring.

Special Recommendation For Clients

Henan Hongxing Mining Machinery Co., Ltd. is considered as a specialist in the market of China vibratory feeder. For example, the electromagnetic vibratory feeder is fitted with a tray made of mild steel and a body housing the electromagnet. The tray which is linked to the armature of the magnet vibrates as the magnet gets energized. The vibration sets the material in motion. We offer this vibratory feeder at industry leading prices to gain optimum client satisfaction.

Note: If you're interested in the product, please submit your requirements and contacts and then we will contact you in two days. We promise that all your informations won't be leaked to anyone.
