The Brief Category of Pulverizer Machine

AUTHOR: admin       DATE: 07 Oct 2012 05:36:16

The Basic Information of Raymond Grinder

As we know, the process of production line of mining machinery is complicated, not only because of the complex machines in the line, but also because of the quality and the working efficiency in the process, so that is the reason why more and more customers would rather pay much more money than choose one machine without good quality that will cause a big problems to the company. So today we introduce one important machine to the customers, hoping that you can get something from it.

Raymond grinder is used for grinding the barite, limestone, kaolin, ceramics, and slag, with the hardness below scale 9.3 of Mohs and 280-odd sorts of non-inflammable and non-explosive stuff in the trades of mining, metallurgical industry, chemical engineering and building material for high fine powder generating and processing. The particle size of finished product can be adjusted from 80 to 325 meshes at random and the particle size of part materials can reach 2000 meshes at the maximum. Raymond grinder (Raymond grinding mill) is applicable to the grinding and processing of more than 280 kinds of non-flammable and non-explosive materials with hardness less than 7 and humidity less than 6%.

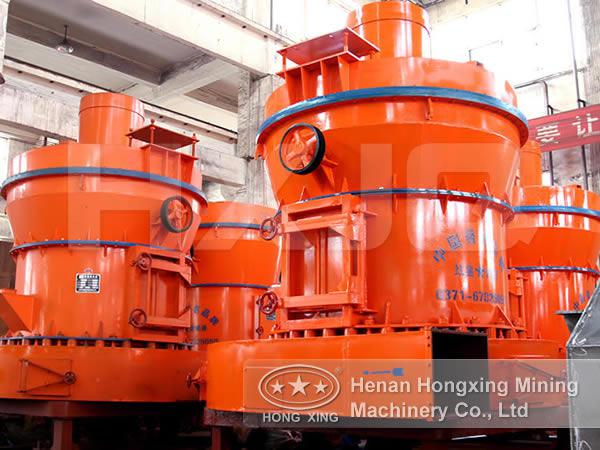

grinder mill

Structure of Rock Grinder

Rock grinder which is also called stone flour mill has the structure as the followings, which can help you understand the machine deeply. The whole plant of stone grinder machine is a vertical structure of strong systematic characteristic, so it occupies small area. It is an independent production system from crushing of raw material to grinding and packing. Compared with other milling plants, its passing ratio achieves 99%, this is what other mill cannot reach.

Working Operation of Milling Equipment

The Raymond pulverizer which is one machine of grinder mills can crush the large-size materials to the required feeding size and then will deliver the materials to the storehouse by the dustpan lift, which will be evenly delivered them to the crushing cavity of the main machine body by the electromagnetism vibrating feeder. And the materials which have entered the grinding cavity will receive the grinding between the grinding roller and ring in order to produce the powder, which will be brought to the analyzer to grade by the wind machine. And the required fine powder will enter into the large cyclone collector by the air stream to receive the separation and collection. And at last, the final products will be discharged out by the tripper.

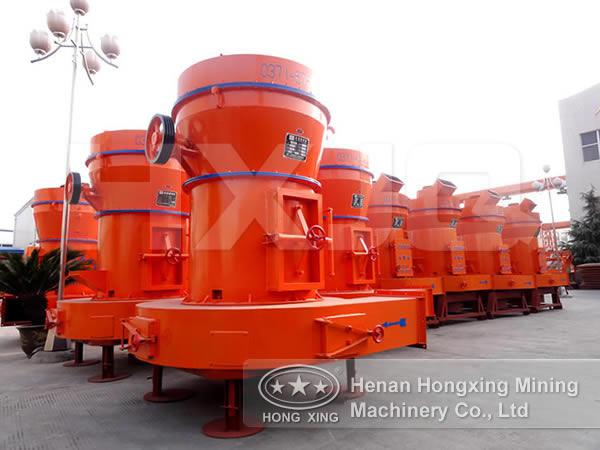

milling equipment

Features of Grinder Mill

According to the processing technology of ultrafine equipment that our company grasps for years, the problems above on have got a comprehensive technical renovation. If they are separated and expanded production, benefits will be increased remarkably. Therefore, we have a lot of innovation on the structure of Raymond mills.

There must be some different manufacturers producing the mining machines no matter whether it is at home and abroad, which can predict the fiercer competition in the future of the international market. And we have prepared for the unpredictable future, because we believe that we can stand on the top of the same mountain of the same field by relying on the quality and sale service of our products, which can help us to achieve something that we have been longing for to get all the time.
