Raymond Mill

Raymond Mill

Hongxing Raymond mill is applicable to the grinding and processing of more than 280 kinds of non-flammable and non-explosive materials with hardness less than 7 and humidity less than 6% in mining, construction, chemical industry and metallurgy, such as barite, calcite, feldspar, talcum, marble, limestone, clay and glass.


Get Quote        Get More Help

Introduction To Raymond Mill

Hongxing Raymond mill is applicable to the grinding and processing of more than 280 kinds of non-flammable and non-explosive materials with hardness less than 7 and humidity less than 6% in mining, construction, chemical industry and metallurgy, such as barite, calcite, feldspar, talcum, marble, limestone, clay, glass. The fineness of the finished product can be adjusted from 100 meshes to 325 meshes according to requirements.

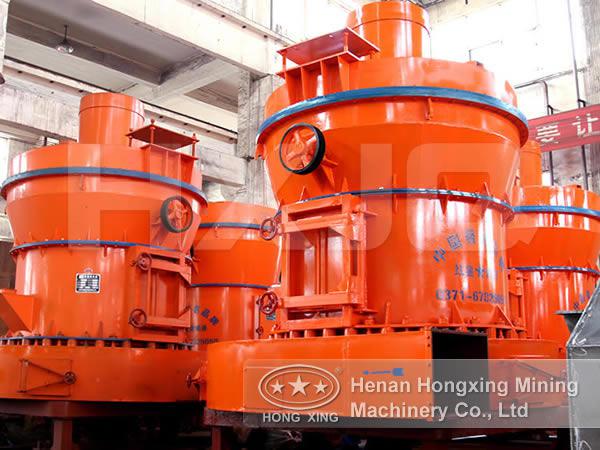

Raymond mill



Working Process Of Grinding Mills

Load the stuff for grinding evenly and continuously into the grinding chamber of the main frame. Due to the centrifugal force in rotation, the roller swings outward and presses closely upon the ring. The shovel carries the stuff to the space between the roller and ring. When the roller rolls, the stuff is thus ground.

After being ground, the stuff is to be routed to the sorter along the wind belt of the blower and the rough powder will be put back to the grinder for regrinding. The fine powder flows into the product cyclone collector together with airflow and is expelled from the powder output pipe as product.

In the grinding chamber, since the stuff may contain moisture to some extent, the heat generated during grinding makes the moisture evaporate. since the pipeline joints are not airtight, the external air is sucked in and the circulation air mass increases. In order to enable the grinder to work under negative pressures, the increased airflow is guided to the duster anew sequentially to the atmosphere after purification.

Working Features Of Raymond Pulverizer

Hongxing raymond pulverizer is widely used for grinding non-flammable and non-explosive materials whose Moh’s hardness is below 9.3 and humidity less than 6% such as barite, calcite, potassium feldspar, talc, marble, limestone, dolomite, fluorite and lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass and thermal insulation material in mine, metallurgy, chemistry and building industry. The granularity of the final products of the R type Raymond mill can be adjusted in the ranges of 80—325 meshes and part materials can reach 600 meshes.

Main Features And Benefits Of Raymond Grinder

1. Strong integration capacity, space saving

2. The screen-passing rate can reach 99%

3. Easy operation, light in weight

4. Lower oil and power consumption
